Turf installation Equipment
F-1400 Sand filling machine
F-1.2/D Sand filling machine
CS-150 Sand infill machine
SSJ-1.5 Brushing machine
SSJ-1.5Q Brushing machine

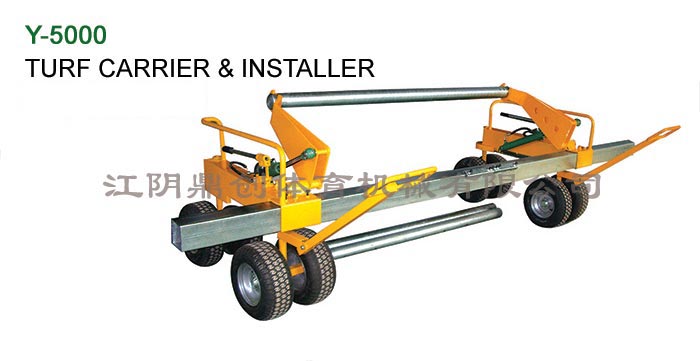

Y-5000 Turf carrier
Current Pos | Turf installation Equipment

Main technical data
Working width:  1-5m
Lifting Height: 1200mm
Lifting Power: 2000Kg
Machine weight: 105kg
Appearance measurement:  L1400×W950×H1000mm

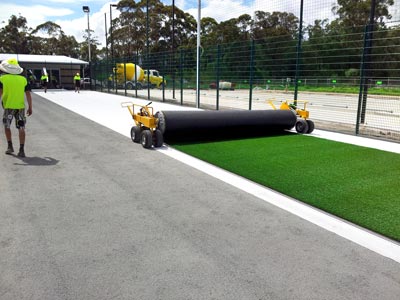

          The machine is specialized cart in transport and installation for artificial turI.the turf allows the laying of artificial turf reels up 5m width.The operation of machineconsists of 2 carts to work together (direction charged.transport.up and down): Each cart is Provided with two steerable double tyres being turned synchronously viadrawbar and tie bar;A squar crossbeam connects both carts to a transport unit 4 pairs of wheels all together to take the total weight.that's why only a minimum of surfacepressure will be guaranteed.ensuring even an effortless transport on non-compacted basic surfaces;Both carts are equipped with a hydraulically actuated liftig deviceconsisting of a hand pump and hydraulic cylinder to put in the axle lor an easy lifting and lowering of the artificial turf reel.
