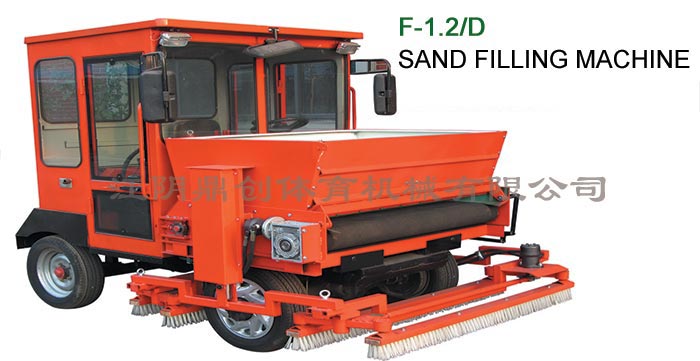

The machine is powered by domestic diesel engine with 22HP.All the functions of the equipment arr combined with mechanical and hydraulic control.The walkingof equipment is mechanical transmission,sand filling,combing,brush lifting,equipment steering are all hydraulic control. The speed of the equipment is moving at a constantspeed.The construction time 1s 1-20 meters per minute and the working width is 1.3 meters.The moving speed of the empty car can be adjusted the gear position to achieve.The sand gate can be adjusted 1n advance to control the spread of quartz sand and rubber granules. The spreading speed is transmitted by conveyor belt with uniform speed. In the same process,the vibrating brush head will comb the filling material evenly to the roots of the grass and to make full play of the role of quartz sand fixed grass.
Main technical data |
Loading capacity: 800-1000kgs |
Sand filling width: 1300mm |
Moving speed: 1-20km/h |
Power: 16.18kw/22Hp |
Machine Weight: 1500kg |
Appearance measurement: 2900x1800x2100mm | |
| |
